ESP32 Smart Control Board for Realistic RC Model Automation
8 min
- Project Overview: Bringing Professional Automation to Hobby RC Models
- The Challenge: Compact, Reliable, and Feature-Rich Electronics for RC Models
- Project Highlights & Innovations
- PCB Design and Manufacturing with JLCPCB
- From Design to Assembled Boards: The JLCPCB PCBA Advantage
- Real-World Implementation and Results
- Technical Deep-Dive: Why This Design Excels
- FAQ about ESP32 Smart Control Board
- Conclusion
Key Takeaways
This project demonstrates how a well-designed custom PCB, manufactured and assembled through JLCPCB, can democratize advanced electronics for hobbyists. Key lessons include:
Project Overview: Bringing Professional Automation to Hobby RC Models
In the vibrant world of remote-controlled modeling, enthusiasts constantly seek ways to elevate simple toy-grade vehicles into immersive, realistic experiences. Aldeir Moreira, creator of the popular YouTube channel Arduino Para Modelismo, developed the ESP32 Smart Control Board — an ultra-compact, feature-rich control solution that transforms RC trucks, cars, boats, and machinery with precise movement control, dynamic lighting effects, and synchronized realistic sound.
In the vibrant world of remote-controlled modeling, enthusiasts constantly seek ways to elevate simple toy-grade vehicles into immersive, realistic experiences. Aldeir Moreira, creator of the popular YouTube channel Arduino Para Modelismo, developed the ESP32 Smart Control Board — an ultra-compact, feature-rich control solution that transforms RC trucks, cars, boats, and machinery with precise movement control, dynamic lighting effects, and synchronized realistic sound.
JLCPCB played a pivotal role by delivering high-precision PCBs and reliable assembly that enabled this professional-grade integration, far surpassing the mess and unreliability of traditional point-to-point wiring.
The Challenge: Compact, Reliable, and Feature-Rich Electronics for RC Models
Hobbyists building realistic RC models face common frustrations: cluttered wiring harnesses that fail under vibration, inconsistent performance from off-the-shelf modules, and difficulty scaling projects across different platforms like trucks or excavators. Aldeir wanted a single, reproducible board that could handle:
- Precise servo and motor control for realistic movement.
- Independent control of up to 8 LED channels for headlights, taillights, beacons, and effects.
- Integration with external audio modules for synchronized engine, horn, and environmental sounds.
- Clean, labeled connectors for quick plug-and-play with peripherals.
- Wireless control options suitable for both beginners and advanced users.
- Operation in demanding environments with reliable power management (including 4.2V battery support).
The design demanded high component density on a very small board while maintaining signal integrity, thermal performance, and ease of assembly for the community. Traditional prototyping methods were too bulky and fragile for the target applications.
Project Highlights & Innovations
The ESP32 Smart Control Board stands out through several key innovations:

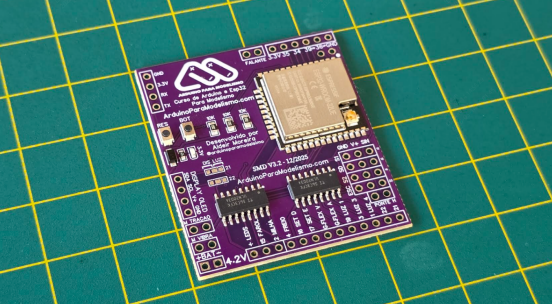

- Ultra-Compact High-Density Layout: At just ~4.5 × 4.8 cm, the board maximizes functionality in minimal space, ideal for tight RC chassis.
- ESP32-Centric Architecture: Leverages the ESP32's powerful dual-core processing, built-in wireless capabilities (Wi-Fi, Bluetooth, ESP-NOW), and ample I/O for comprehensive control.
- Flexible Motor and Actuator Support: Dedicated outputs for 3 servos plus compatibility with various motor drivers.
- Advanced Lighting Control: 8 independent LED channels with clear labeling for realistic effects.
- Audio and Sensor Integration: Footprint for audio amplification modules plus connectors for additional sensors and peripherals.
- User-Friendly Design: Clearly labeled pinouts, buttons (including RESET and BOOT), status LEDs, and power management features like +BAT and 4.2V support.
- Multi-Modal Control: Seamless compatibility with PS4/PS5-style controllers, mobile apps, and peer-to-peer ESP-NOW setups.
PCB Design and Manufacturing with JLCPCB
Alder designed the PCB with careful attention to JLCPCB's manufacturing capabilities to ensure reliability and reproducibility. The compact 2-layer board (typical for cost-effective, high-volume hobby projects) features optimized trace routing, proper grounding, and component placement that respects design-for-manufacturability (DFM) guidelines.Key aspects aligned with JLCPCB processes include:
- High-Density SMT Placement: The board incorporates fine-pitch components, passives, and modules (including the prominent ESP32 wireless module) that benefit from professional SMT assembly for consistent quality.
- Clear Silkscreen and Labeling: Extensive labeling for all connectors (GND, 3.3V, RX/TX, servos, LEDs, etc.) aids assembly and debugging — a best practice for educational and community projects.
- Power Integrity: Dedicated power planes/paths and connectors for stable 3.3V/4.2V operation, critical for reliable ESP32 and peripheral performance.
- Mechanical Considerations: Mounting holes and edge design suitable for integration into RC frames, with attention to vibration resistance.
JLCPCB's precision fabrication ensured tight tolerances on traces and pads, vital for the dense layout and reliable wireless performance. The professional silkscreen and solder mask quality provided excellent readability and protection.
From Design to Assembled Boards: The JLCPCB PCBA Advantage
The assembly process handled the ESP32 module, various ICs (such as the visible driver chips), resistors, capacitors, buttons, and connectors with high accuracy. Double-sided considerations (where applicable) and fine-pitch soldering were managed flawlessly by JLCPCB's automated lines, resulting in boards ready for immediate integration.
The assembly process handled the ESP32 module, various ICs (such as the visible driver chips), resistors, capacitors, buttons, and connectors with high accuracy. Double-sided considerations (where applicable) and fine-pitch soldering were managed flawlessly by JLCPCB's automated lines, resulting in boards ready for immediate integration.
This professional assembly significantly improved reliability compared to hand-built prototypes — crucial for RC models that endure constant movement and vibration. Builders receive consistent, high-quality boards that perform identically, enabling the community to focus on software, mechanics, and creativity rather than troubleshooting basic connections.
Real-World Implementation and Results

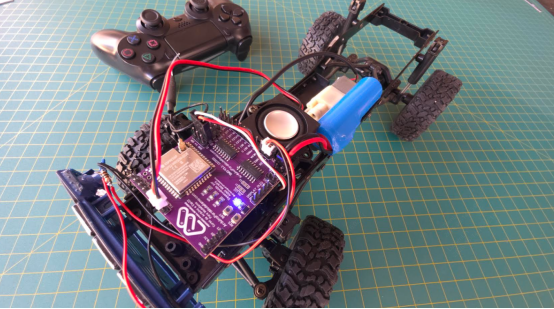

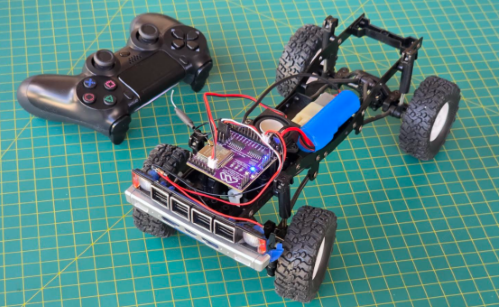

In the completed RC truck build, the ESP32 Smart Control Board sits centrally, connecting seamlessly to the chassis motors/ESCs, steering servo, LED lighting arrays, speaker system, and a PS4 controller receiver. Red and black power wires deliver clean battery power, while organized signal cables maintain a tidy installation.
The system delivers responsive control, synchronized lighting (e.g., working headlights, brake lights, turn signals), and realistic sound effects that respond to throttle and actions — creating a truly immersive experience far beyond stock RC toys.Key performance outcomes include:
- Low-latency wireless control suitable for dynamic driving.
- Stable operation across varied battery voltages and loads.
- Easy expandability for additional features like sensors or more outputs.
- Scalability: The same board design works across different model types with minimal changes.
- Makers following Aldeir's tutorials can replicate these results quickly thanks to the professional PCBs.
Technical Deep-Dive: Why This Design Excels
The board's success stems from thoughtful engineering:
- ESP32 Integration: Full use of UART, PWM, ADC, and wireless stacks for multifaceted control.
- I/O Optimization: 3 dedicated servo outputs + 8 LED channels + multiple general-purpose connectors.
- Power Management: Onboard regulation and protection suitable for Li-ion/LiPo setups common in RC.
- Wireless Flexibility: Bluetooth for phone control, ESP-NOW for multi-unit coordination (e.g., convoy operations), and controller support for familiar ergonomics.
- Community Focus: Open documentation and clear hardware design lower the barrier for beginners while offering depth for experts.
All elements were chosen and laid out to align with JLCPCB's standard processes, ensuring high yield, excellent solder joints, and long-term durability without requiring exotic (or expensive) specifications.
FAQ about ESP32 Smart Control Board
Q: Is the ESP32 Smart Control Board compatible with different RC model platforms?
Yes. The board is highly versatile and works with a wide range of RC models including trucks, cars, boats, excavators, and other machinery. Thanks to its flexible motor control support (onboard driver modules or external H-bridges/ESCs) and abundant clearly labeled connectors, it can be easily adapted to most common RC chassis.
Q: How do I program this board? Do I need special tools?
The board features standard ESP32 programming interfaces with dedicated RESET and BOOT buttons. You can program it easily using the Arduino IDE, ESP-IDF, or MicroPython. Detailed code examples and step-by-step tutorials are available on Aldeir’s YouTube channel Arduino Para Modelismo, making it beginner-friendly.
Q: Does JLCPCB provide full PCBA assembly service for this project?
Absolutely. JLCPCB offers a complete one-stop PCB fabrication + SMT Assembly (PCBA) service. Simply upload your Gerber files and BOM, and JLCPCB will handle component sourcing and professional assembly — highly recommended for this high-density ESP32 design to ensure consistent quality and reliability.
Q: How many lighting channels and servos does this control board support?
It provides 8 independent LED channels for realistic lighting effects and 3 dedicated servo outputs. Additionally, there are multiple general-purpose I/O pins available for further expansion of lights, sensors, or extra servos.
Q: Can I modify or customize this design for my own projects?
Yes, definitely! Many makers modify the design to suit their specific models. We recommend following JLCPCB’s DFM Guidelines during modifications to maintain high manufacturing yield and optimal cost. Feel free to share your improvements in the comments on Aldeir’s YouTube channel.
Conclusion
"The JLCPCB boards brought a new level of professionalism to my projects," Aldeir noted. "The precision manufacturing and assembly quality made the electronics reliable enough for real-world model use, letting me focus on teaching creative applications rather than fixing hardware issues."
His YouTube tutorials using this board have inspired countless hobbyists to upgrade their models, fostering a vibrant community around accessible RC automation.
Ready to Start Your Own Project?
JLCPCB offers affordable PCB fabrication starting at low quantities, with fast-turnaround PCBA services and an extensive parts library perfect for ESP32-based designs. Upload your Gerber files today and bring your RC automation ideas to life.
