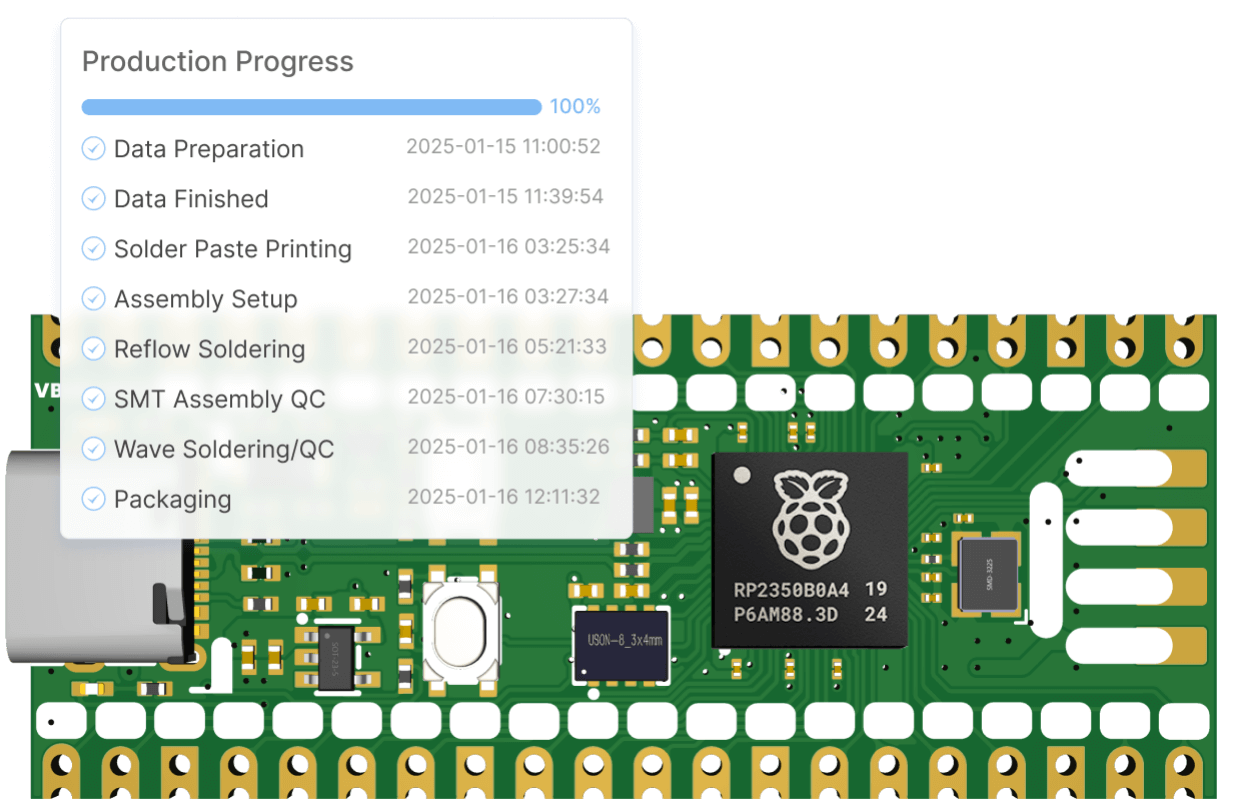

You Innovate with Raspberry Pi RP2350, We Handle the Assembly.
JLCPCB is an authorized PCBA partner for RP2350 based hardware development. To simplify your development
process, Raspberry Pi has partnered with JLCPCB, enabling seamless integration of RP2350 chips into your
designs. By choosing JLCPCB, you get access to high-quality PCBA assembly services designed to accelerate your
RP2350-based product development.
RP2350 A4 is now availble on JLCPCB
Start Designing with Raspberry Pi RP2350 A4 Today
Need help getting started? Raspberry Pi provides comprehensive design resources to simplify your RP2350 A4 based
hardware development.
What has changed from A2 to A4?
The stepping A4 fixed an error in the GPIO pad and several security vulnerabilities.
- • Same design rules as RP2350 A2
- • New PCN for RP2350 A4
- • For details, refer to the official Raspberry Pi page
Recommended Components and Layout Examples
For optimal performance and enhanced system stability, Raspberry Pi recommended RP2350 users to follow the
design rules:
- • Adhere to the example layouts
- • Use the new custom polarised inductor (Abracon AOTA-B201610S3R3-101-T )
- • Use the crystal oscillator (12 MHz Abracon ABM8-272-T3 )
RP2350 reference design from Raspberry Pi
RP2350 reference design in EasyEDA
Preview an RP2350 Board Online with EasyEDA
- • The ColorEasyPICO2 is a development board featuring the RP2350 chip.
- • It is designed for embedded development, IoT projects, and educational purposes.
Build Your RP2350 A4 based Hardware in 3 Easy Steps
Upload your Gerber, BOM&CPL fles to get instant quote on PCB,components and assembly. Assembly Prices start at $8.00 setup fee, and $0.0017 assembly fee per joint.
Start Your Order Now →
Have Questions? We’re Here to Help!
Contact our support team for any inquiries about RP2350 PCBA services or technical assistance.
